Industrial-Grade Metrology with Revopoint MetroX

 We utilize the advanced Revopoint MetroX 3D scanner to deliver professional metrology-grade data for projects of all sizes.

• Blue Laser Cross Lines: Rapidly captures large tracking areas and complex geometries with extreme efficiency.
• Blue Laser Parallel Lines: Extracts ultra-fine surface details, sharp edges, and intricate features with high precision.
• Metrology-Grade Accuracy: Delivers up to 0.03 mm accuracy, ensuring your digital twins perfectly match the physical parts.

Why Choose Our 3D Scanning

• Exact Measurements: Capture complex geometry down to tight functional tolerances.
• Parametric CAD Integration: Convert raw MetroX mesh data directly into clean CAD models (like SolidWorks or Autodesk Fusion) ready for manufacturing.
• Local and Regional Access: Serving innovators and manufacturers across the Austin-San Antonio corridor with hands-on support.

Our Scanning & Engineering Workflow

• Capture: High-resolution laser scanning of physical parts, legacy components, or automotive elements using the MetroX.

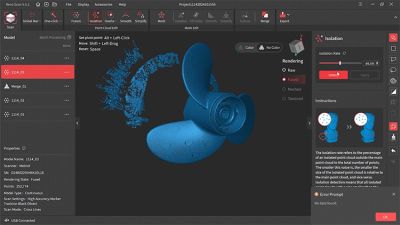

• Process: Mesh cleanup, hole-filling, and optimization to remove noise and ensure clean digital files.
• Model & Produce: Direct export to STEP/STL or complete parametric redesign for on-demand 3D printing and CNC paths.

 The Revopoint MetroX 3D Scanner combines multi-line blue laser and blue structured light technologies. It offers single-frame accuracy up to 0.02 mm, volumetric accuracy of 0.025 mm + 0.05 mm × L (m), and scanning speeds reaching up to 800,000 points per second.

Core Technical Specifications

• Scanning Technology: Multi-line blue laser & Full-field blue structured light
• Single-Frame Accuracy: Up to 0.02 mm
• Volumetric Accuracy: 0.025 mm + 0.05 mm × L (m)
• Fused Point Distance / Resolution: Up to 0.05 mm
• Interface & Connection: USB-C
• Supported Output Formats: STL, OBJ, PLY, ASC, 3MF

Scanning Modes & Performance

• Cross Lines Mode: 14 intersecting blue laser lines, up to 800,000 points/s
• Parallel Lines Mode: 7 parallel blue laser lines for fine details and deep edges
• Full-Field Structured Light: 62 blue light lines, up to 7,000,000 points/s
• Auto Turntable Mode: Dual-axis automated 360-degree turntable
